Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | ISO 9001 |
| Model Number: | P200 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | 10-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Material: | Stainless Steel SS304 | P800: | Pressure Differential Pilot |
|---|---|---|---|
| P100: | Float Control Pilot | P10B: | Bi Level Float Control Pilot |
| P200: | Pressure Reducing Pilot | P500: | Pressre Relief Pilot |
| Others: | On/Off , Altitude , Pressure Differential, Surge Anticipate | ||
| Highlight: | Pressure Pilot Control Valve Accessories,Adjustable Pressure Reducing Pilot,SS304 Pressure Reducing Pilot |
||

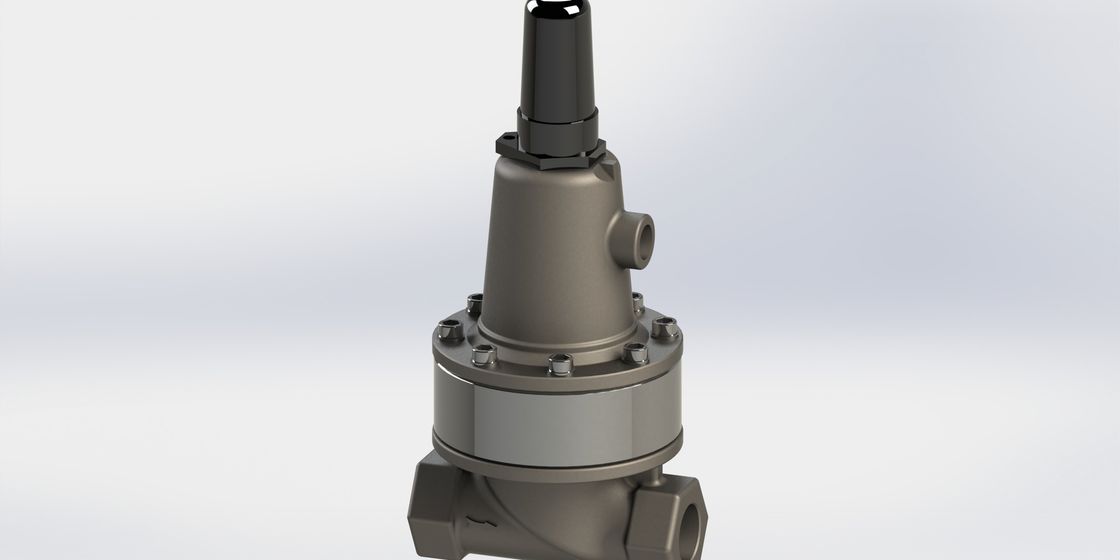

Pressure Differential Pilot SS304 Body Outlet Pressure Adjustable
Stainless Steel 304 Control Valve Accessories Pressure Reducing Control Pilot
Description:
P200 is a pressure reducing pilot which helps A200 maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation.
The main valve is controlled by P200 (creating a minimal differential in open position) to control the water in upper chamber to regulate the outlet pressure.
| No. | Description | Material | Standard |
| 1 | Cap | Plastic | ABS |
| 2 | Adjusting Screw | Stainless Steel | AISI304 |
| 3 | Jam Nut | Stainless Steel | A2 |
| 4 | Spring stable | Stainless Steel | AISI304 |
| 5 | Bonnet | Stainless Steel | AISI304 |
| 6 | Spring | Spring Steel | SiCrV |
| 7 | Nut | Stainless Steel | A2 |
| 8 | Spring stable | Spring Steel | Mn-steel+Ni Plated |
| 9 | Fixing Holder | Stainless Steel | AISI304 |
| 10 | Screw | Stainless Steel | A2 |
| 11 | Diaphagm | Nylon Reinforced Rubber | EPDM+Nylon |
| 12 | Yoke | Stainless Steel | AISI304 |
| 13 | Body | Stainless Steel | AISI304 |
| 14 | Disc | Stainless Steel+rubber | AISI304+EPDM |
| 15 | O-ring | Rubber | NBR |
| 16 | Plug | Stainless Steel | AISI304 |
